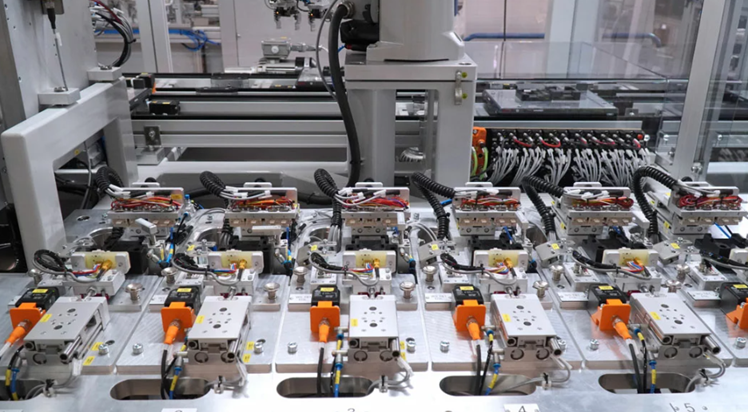

End-of-Line testing is a critical phase in automotive manufacturing, ensuring that each ECU functions correctly before being integrated into vehicles. Given that modern vehicles can contain over 100 ECUs controlling various systems from engine management to ADAS, rigorous End-of-Line (EoL) testing is vital to guarantee safety, reliability and performance. Each ECU must communicate seamlessly with other components within the vehicle’s network and even a minor fault can lead to significant performance issues or safety concerns.
EoL testing serves as the final checkpoint to detect software bugs, hardware defects or integration problems before the vehicle moves to final assembly or reaches the customer. This phase also validates compliance with industry standards like ISO 26262 for functional safety, ensuring that ECUs can withstand various operational stresses. Moreover, as vehicles evolve with increasing connectivity and automation, the complexity of ECUs grows, making EoL testing not just important but essential for avoiding costly recalls and maintaining consumer trust. By identifying and rectifying potential faults early, manufacturers optimize production efficiency and uphold their brand reputation in a highly competitive market.

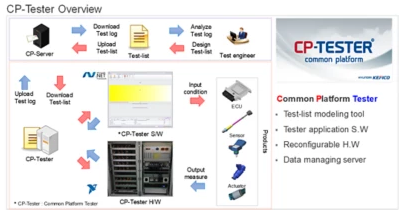

Several real-world examples illustrate how major OEMs implement EoL testing to address these challenges. Hyundai Kefico, for instance, implemented a standardized ECU Functional Tester known as the ‘Common Platform Tester’ (CP-Tester).
Based on National Instruments’ PXI platform, this system improved testing efficiency by 15% and allowed adaptable testing across various ECU types. By consolidating multiple test procedures into a single platform, Hyundai Kefico reduced hardware costs and shortened test cycle times, streamlining their production lines.
Similarly, Toyota employs advanced EoL testing systems that integrate Vector CANoe for communication testing and ETAS INCA for calibration, ensuring comprehensive validation of their powertrain and safety ECUs. These applications highlight how OEMs leverage cutting-edge tools and modular test platforms to maintain high quality standards while managing the increasing complexity of automotive electronics.
Another example comes from DMC, which developed a turnkey automated EoL functional tester for a drivetrain ECU, utilizing NI LabVIEW and TestStand. The system simulated loads and sensor signals to ensure comprehensive testing of ECU inputs, outputs and internal states. This approach enabled faster test cycles and improved fault detection rates, significantly reducing the risk of defective units reaching assembly. Additionally, the tester’s modular design allowed easy adaptation to different ECU models, providing flexibility for future product lines. Companies like Cummins and John Deere have similarly adopted such automated test systems to enhance reliability in their powertrain control units, demonstrating the growing industry reliance on integrated hardware-software solutions for EoL testing.
Table of Contents
Importance of End-of-Line Testing
EoL testing serves as the final verification step to detect any defects or anomalies in ECUs before they are deployed in vehicles. This phase is essential for several reasons. First, it ensures functional integrity by validating that the ECU performs its intended operations under specified conditions. It also plays a crucial role in quality assurance by identifying manufacturing defects, software glitches or hardware malfunctions that may have occurred during production.
Furthermore, EoL testing supports regulatory compliance, helping manufacturers meet stringent industry standards and safety regulations such as ISO 26262. Lastly, by catching issues before the product reaches the end user, EoL testing significantly reduces the likelihood of post-sale failures, which not only minimizes warranty claims but also enhances customer satisfaction and protects the automaker’s brand reputation.
Standard End-of-Line Testing Procedures
EoL testing encompasses a series of procedures designed to evaluate various aspects of ECU performance:
1. Firmware Flashing
ECUs are programmed with the latest firmware versions to ensure up-to-date functionality. Tools like National Instruments’ LabVIEW and TestStand are commonly used for automating this process. For example, Hyundai Kefico employs automated flashing systems based on National Instruments platforms to efficiently update ECU software across multiple vehicle models. This process not only guarantees that the ECU runs the most recent software but also verifies the integrity of the firmware after flashing to prevent corruption or incomplete updates.
Additionally, automated flashing reduces human error and shortens production cycle times, helping manufacturers maintain high throughput without compromising quality. Ensuring proper firmware installation is essential, as software bugs or outdated code can lead to critical malfunctions once the ECU is integrated into the vehicle.
2. Input/Output Verification
Simulated signals are sent to the ECU to verify its response to various inputs, ensuring accurate processing and output generation. This includes testing analog, digital and PWM signals. For instance, Toyota uses automated test benches that simulate sensor inputs such as temperature, pressure and speed to validate ECU outputs controlling fuel injection and ignition timing. This process helps identify any discrepancies in signal conversion or actuator control before the ECU is installed in the vehicle.
Additionally, verifying PWM signals is crucial in systems like electronic throttle control and variable valve timing, where precise modulation impacts engine performance and emissions. By thoroughly testing I/O signals, manufacturers can prevent failures that might lead to drivability issues or increased warranty costs.
3. Communication Protocol Testing
ECUs communicate over various protocols such as CAN, LIN, FlexRay and Ethernet. Testing ensures that the ECU can transmit and receive data correctly across these networks. Tools like Vector’s CANoe and CANalyzer are widely used for this purpose. For example, Audi and Mercedes-Benz utilize CANoe extensively to simulate complex vehicle network environments and verify ECU interoperability under different communication loads.
Communication testing includes verifying message timing, error handling and network arbitration to prevent data collisions and ensure real-time responsiveness. This is especially critical in safety-related systems such as airbag deployment or anti-lock braking systems (ABS), where delayed or lost messages could have serious consequences. By thoroughly validating communication protocols, manufacturers can ensure seamless integration of multiple ECUs within increasingly complex vehicle architectures.
4. Diagnostic Functionality
Diagnostic protocols like UDS (Unified Diagnostic Services) are tested to ensure that the ECU can report faults and support maintenance activities. This testing verifies that the ECU correctly stores and communicates diagnostic trouble codes (DTCs), allowing service technicians to identify and resolve issues efficiently. For example, automotive manufacturers such as Volkswagen and General Motors rigorously test UDS implementations to ensure compliance with industry standards and seamless integration with diagnostic scan tools.
The ability of the ECU to execute service routines such as sensor calibrations or actuator tests is validated during EoL testing to support ongoing vehicle maintenance and repair processes. Ensuring robust diagnostic functionality not only improves vehicle uptime but also enhances overall safety and regulatory compliance.
5. Stress and Environmental Testing
ECUs are subjected to stress tests, including temperature variations and voltage fluctuations, to assess their robustness under extreme conditions. This may involve thermal chambers and power cycling tests. These procedures help ensure that the ECU can perform reliably in harsh automotive environments, such as extreme heat under the hood or freezing temperatures in cold climates.
For instance, OEMs like BMW and Ford use thermal shock chambers to cycle ECUs between -40°C and +125°C to simulate real-world operating extremes. Additionally, voltage margin testing is conducted to evaluate the ECU’s tolerance to battery cranking and transient electrical disturbances. Such testing is crucial to prevent failures in critical systems like power steering or brake control under adverse conditions.
Key Tools and Technologies in End-of-Line Testing
Several specialized tools and platforms are employed in EoL testing to ensure comprehensive evaluation:
1. Vector CANoe and CAPL
Vector CANoe is a versatile tool for simulating and testing ECU communication networks. It supports various protocols and, when combined with the CAPL scripting language, allows for customized test scenarios. For example, major OEMs like Volkswagen and BMW use CANoe extensively to create realistic vehicle network simulations that help identify communication faults before production. CAPL scripting enables testers to automate complex sequences and error injections, making it easier to validate ECU behavior under a wide range of conditions.
This flexibility helps reduce testing time while increasing coverage, ultimately improving the reliability of in-vehicle networks. Additionally, CANoe’s ability to interface with physical ECUs allows for seamless integration between software simulation and hardware testing environments.
2. National Instruments LabVIEW and TestStand
These platforms facilitate automated testing by integrating hardware and software components, enabling real-time data acquisition and analysis. For instance, Ford utilizes LabVIEW and TestStand in their EoL testing lines to automate ECU functional tests, ensuring consistent and repeatable results across thousands of units. LabVIEW’s graphical programming environment allows engineers to design custom test sequences that interface directly with sensors and actuators, while TestStand manages overall test execution and reporting.
This combination enhances productivity by reducing manual intervention and providing detailed diagnostics, which helps quickly identify and resolve issues during production. Additionally, their modular architecture makes it easier for manufacturers to adapt tests for different ECU variants or update procedures as vehicle technologies evolve.
3. ETAS INCA
INCA is used for measuring, calibrating and diagnosing ECUs, particularly in powertrain applications. It allows for real-time data visualization and parameter tuning. For example, automotive giants like Daimler and Bosch rely on INCA during EoL testing to fine-tune engine control parameters and verify sensor accuracy under simulated driving conditions.
The tool’s ability to interface directly with ECUs enables engineers to monitor critical signals such as fuel injection timing, exhaust gas recirculation and turbocharger boost pressure in real time. This level of detailed analysis ensures that powertrain ECUs meet strict emission and performance standards before leaving the factory. Additionally, INCA’s robust calibration capabilities help manufacturers optimize fuel efficiency and reduce emissions, aligning with increasingly stringent global regulations.
4. DEWETRON DAQ Systems
DEWETRON provides data acquisition systems that offer high-precision measurements, essential for validating the performance of ECUs under various test conditions. For example, companies like PSA Group and Magna International use DEWETRON DAQ systems to capture detailed sensor and actuator signals during EoL testing, ensuring accurate performance analysis. These systems support multiple input types, including analog, digital and CAN bus data, enabling comprehensive monitoring of ECU responses in real time.
The high sampling rates and low noise levels of DEWETRON equipment allow engineers to detect subtle anomalies that might affect vehicle safety or reliability. Furthermore, DEWETRON’s flexible software tools facilitate easy integration into existing test benches, speeding up the validation process and enhancing overall test coverage.
Advancements in End-of-Line Testing
The integration of Artificial Intelligence into End-of-Line testing is transforming the way automotive manufacturers validate ECUs. AI-driven tools can automate the generation of test cases by converting complex testing scenarios into executable scripts, significantly reducing the manual effort and time traditionally required. Furthermore, AI enables intelligent calibration by dynamically adjusting testing parameters in real time based on incoming data, which enhances the accuracy and relevance of the tests.
In addition to improving test execution, AI accelerates the analysis of vast amounts of test data, quickly identifying patterns, anomalies and potential issues that might otherwise go unnoticed. This combination of automation, adaptability and advanced data analytics is helping manufacturers improve test coverage, reduce costs and ensure higher reliability of ECUs before they are integrated into vehicles.
Final Thoughts
End-of-Line testing is an indispensable component of automotive ECU manufacturing, ensuring that each unit meets stringent quality and performance standards. The adoption of advanced tools and technologies, coupled with AI integration, is enhancing the efficiency and effectiveness of EoL testing processes. As vehicles become increasingly reliant on complex electronic systems, robust EoL testing will continue to play a vital role in delivering safe and reliable automotive solutions.
