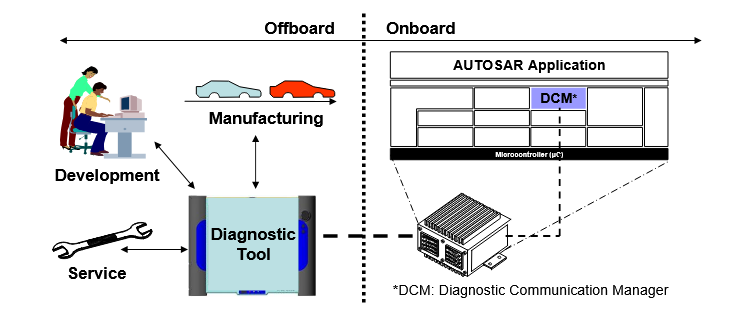

The Diagnostic Communication Manager module in AUTOSAR plays a vital role in enabling standardized diagnostic communication between external tools and vehicle ECUs. A wide range of use cases of DCM module are used in real-world applications across the automotive development and service lifecycle.
From software flashing during production to advanced diagnostics in service workshops, DCM ensures secure and protocol-compliant interactions. It also supports emission-related OBD and remote diagnostics over modern networks like Ethernet.
These use cases of DCM module highlight its importance in maintaining vehicle health, ensuring regulatory compliance and streamlining service operations.
Table of Contents
ECU Flashing and Reprogramming
One of the critical use cases of DCM module in AUTOSAR is ECU flashing and reprogramming, which is essential for updating the software of vehicle ECUs both during manufacturing and throughout the vehicle’s lifecycle.
During a software update, an external diagnostic tool sends a series of requests to the ECU via the DCM, such as RequestDownload to initiate the transfer, TransferData to send the firmware in segments, and RequestTransferExit to finalize the process.
The DCM manages these requests by validating the data, controlling the timing between message exchanges, and ensuring that the ECU correctly receives and stores the new software image.
For example, if a vehicle manufacturer needs to patch a safety-critical bug in the ECU software, the DCM facilitates a secure and orderly update procedure to prevent data corruption or ECU malfunction. Additionally, the module handles security access to restrict flashing only to authorized diagnostic tools, protecting against unauthorized reprogramming.
This functionality enables manufacturers and service centers to keep vehicle software up-to-date, improve performance, and add new features without physically replacing hardware components. Overall, the DCM ensures that ECU flashing is reliable, secure, and compliant with automotive standards.
On-Board Diagnostics (OBD)
The DCM module plays a fundamental role in enabling On-Board Diagnostics, which is crucial for monitoring vehicle emissions and ensuring compliance with environmental regulations. Through the DCM, the ECU continuously monitors key engine and emission control parameters and communicates any detected faults via standardized OBD-II services.
For instance, when a sensor detects that the catalytic converter efficiency is below a threshold, the DCM facilitates sending (DTCs to external diagnostic testers or the vehicle’s own dashboard warning lights. This real-time fault reporting helps technicians quickly identify emission-related issues during inspections or maintenance.
Moreover, the DCM supports mandatory OBD-II services like reading freeze frame data, clearing DTCs, and monitoring readiness tests, which are essential for vehicle certification and regulatory compliance worldwide. By managing these services efficiently, the DCM ensures that vehicles maintain low emissions and operate within legal limits throughout their lifecycle.
Factory and Service Diagnostics
In both manufacturing plants and service centers, the DCM module is indispensable for performing comprehensive factory and service diagnostics on vehicle ECUs. During production, manufacturers use the DCM to execute automated system checks, verifying that all vehicle components and software modules are functioning correctly before the vehicle leaves the assembly line.
For example, a factory diagnostic tool might send requests through the DCM to test sensors, actuators, or communication buses, ensuring everything meets quality standards. In service centers, technicians rely on the DCM to retrieve DTCs that help pinpoint issues reported by the vehicle’s monitoring systems.
The DCM also enables the execution of special diagnostic routines, such as actuator tests or calibration procedures, which assist in troubleshooting and repairing vehicle faults. By providing standardized access to ECU data and control functions, the DCM simplifies diagnostics, reduces repair times and improves accuracy.
Remote Diagnostics
The DCM module has become essential for enabling remote diagnostics over modern communication networks such as Ethernet and wireless protocols like LTE or 5G. This capability allows manufacturers and service providers to access vehicle diagnostic data and perform troubleshooting without the need for a physical connection or visit to the service center.
For example, if a vehicle experiences an intermittent fault while on the road, the DCM can securely receive diagnostic requests remotely, allowing the support team to analyze trouble codes and system status in real-time. Additionally, remote ECU firmware updates can be initiated and managed through the DCM, ensuring that the vehicle software is kept up-to-date with the latest improvements or security patches.
This reduces downtime and costs for both owners and service providers by minimizing the need for in-person diagnostics and repairs. The DCM ensures that these remote interactions comply with security protocols, protecting the vehicle from unauthorized access.
Overall, remote diagnostics powered by the DCM module represent a major step forward in vehicle maintenance, making support faster, more convenient, and more efficient.
